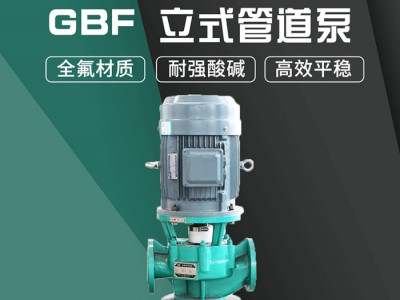

JiangNan/江 南泵业65GBF-20F GBF氟塑料管道泵
| 流量范围 | 0.5-120m3/h |
|---|---|
| 扬程范围 | 1.5-50m |
| 功率范围 | 0.75-37kw |
| 产品别名 | GBF衬氟管道泵|GBF四氟管道泵 |
| 品牌厂家 | JiangNan/江 南泵业 |
| 材质 | F46|铸铁 |
| 产地 | 安徽 |
| 类型 | GBF氟塑料管道泵 |
| 用途 | 管道泵 |
| 叶轮数目 | 多级 |
| 叶轮吸入方式 | 双吸式 |
| 型号 | 65GBF-20F |
| 序号 | 型号 | 流量 | 扬程 | 效率 | 口径 | 口径 | 汽蚀余量 | 电机功率 | 转速 |
| Flow | Pump head | η | CAL | CAL | Npsh | Power | Speed | ||
| (Model) | (m3/h) | (m) | (%) | (mm) | (mm) | (m) | (kw) | (r/min) | |
| 1 | GBF25-15 | 2.5 | 15 | 34 | 25 | 25 | 4 | 0.75 | 2900 |
| 2 | GBF32-20 | 3.6 | 20 | 44 | 32 | 32 | 4 | 1.1 | 2900 |
| 3 | GBF40-20 | 6.3 | 20 | 46 | 40 | 40 | 4 | 1.5 | 2900 |
| 4 | GBF40-30 | 6.3 | 30 | 40 | 40 | 40 | 4 | 2.2 | 2900 |
| 5 | GBF40-50 | 6.3 | 50 | 46 | 40 | 40 | 4 | 5.5 | 2900 |
| 6 | GBF50-20 | 12.5 | 20 | 57 | 50 | 50 | 4 | 2.2 | 2900 |
| 7 | GBF50-30 | 12.5 | 30 | 51 | 50 | 50 | 4 | 3 | 2900 |
| 8 | GBF50-50 | 12.5 | 50 | 58 | 50 | 50 | 4 | 5.5 | 2900 |
| 9 | GBF65-20 | 25 | 20 | 65 | 65 | 65 | 4 | 3 | 2900 |
| 10 | GBF65-30 | 25 | 30 | 60 | 65 | 65 | 4 | 5.5 | 2900 |
| 11 | GBF65-50 | 25 | 50 | 54 | 65 | 65 | 4 | 7.5 | 2900 |
| 12 | GBF80-20 | 40 | 20 | 67 | 80 | 80 | 4 | 4 | 2900 |
| 13 | GBF80-30 | 45 | 30 | 66 | 80 | 80 | 4 | 7.5 | 2900 |
| 14 | GBF80-50 | 50 | 50 | 71 | 80 | 80 | 4 | 15 | 2900 |
| 15 | GBF80-80 | 50 | 80 | 59 | 80 | 80 | 4 | 22 | 2900 |
| 16 | GBF100-20 | 100 | 20 | 35 | 100 | 100 | 4 | 11 | 2900 |
| 17 | GBF100-30 | 100 | 30 | 46 | 100 | 100 | 4 | 15 | 2900 |
| 18 | GBF125-18 | 80 | 18 | 68 | 125 | 125 | 4 | 7.5 | 1450 |
| 19 | GBF150-15 | 100 | 15 | 77 | 150 | 150 | 4 | 7.5 | 1450 |
| 20 | GBF150-30 | 150 | 30 | 73 | 150 | 150 | 4 | 22 | 1450 |
| 21 | GBF200-20 | 400 | 20 | 79 | 200 | 200 | 4 | 37 | 1450 |
| 序号 | 型号 | 外?型?安?装?尺?寸 | 进口法兰尺寸 | 出口法兰尺寸 | ||||||||
| Outside and installing size | Inlet flange size | Exit flange size | ||||||||||
| Model | L | L1 | H | h | S | D | d | K | n-A | K | n-B | |
| 1 | 40GBF-30 | 354 | 177 | 590 | 126 | 28 | 280 | 240 | 110 | 4-M16 | 110 | 4-Φ17.5 |
| 2 | 50GBF-30 | 360 | 180 | 660 | 146 | 28 | 280 | 240 | 125 | 4-M16 | 125 | 4-M16 |
| 3 | 65GBF-30 | 360 | 180 | 720 | 149 | 28 | 280 | 240 | 145 | 4-Φ17.5 | 145 | 4-Φ17.5 |
| 4 | 80GBF-30 | 400 | 200 | 730 | 156 | 28 | 300 | 260 | 160 | 8-M16 | 160 | 8-M16 |
| 5 | 100ZBF-30 | 440 | 220 | 900 | 173 | 28 | 320 | 280 | 180 | 8-M16 | 180 | 8-M16 |
