| 曝气设备种类 | 曝气机 |
|---|---|
| 产品用途 | 污水处理曝气风机 |
| 材质 | 铁壳风机 |
| 产地 | 山东 |
| 电压 | 380V |
| 风量 | 0.7-3.57m3/min |
| 功率 | 0.75-5.5 |
| 类型 | 回转式鼓风机 |
| 升压 | 98kPa |
| 适用范围 | 水处理工程 |
| 性能 | 耐磨风机 |
| 用途 | 管道风机 |
| 风机压力 | 高压风机 |
| 气流方向 | 回旋式风机 |
| 品牌 | 启正 |
| 型号 | CCR-65 |
| 加工定制 | 否 |
| 类型 | 回转式鼓风机 | 气流方向 | 回转式风机 |
| 材质 | 铁壳风机 | 风机压力 | 中压风机 |
| 性能 | 低噪音风机 | 用途 | 管道风机 |
| 重量 | 150（kg） | 功率 | 0.75-5.5（kw） |
| 风量 | 0.7-3.7（m3/min） | 升压 | 98（kPa） |
| 适用范围 | 污水处理 |

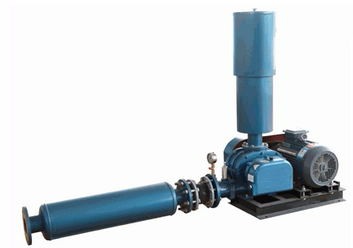

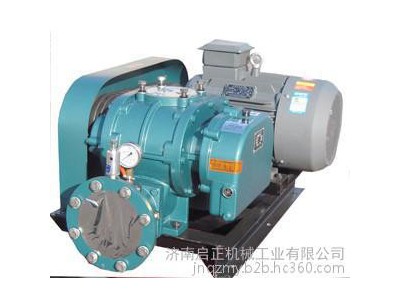

供应CCR-65三叶鼓风机，济南启正机械工业有限公司直销，罗茨风机结构与工作原理：
CCR型三叶鼓风机是在长年制造罗茨风机的基础上采用新技术开发的新产品。本机通过改变进风口进风方向和在叶轮上采用新型线，使用绝热效率和容积效率进一步提高，是风量和压力特性特优良的风机。所谓效率优良就是风机自身发热量减少，即温度上升值下降，各种机型在干燥状态下使用的排风压力可达0.8kgf/cm2.
CCR65型罗茨风机参数表
| 转速 (r/min) | 升压 (kPa) | 流量 (m3/min) | 配套电机 | 整机最 大重量 （kg） |
| 转速 （r/min) | 升压 （kPa) | 流量 （m3/min) | 配套电机 | 整机最 大重量 （kg） | ||
| 型号 | 功率 （kW） | 型号 | 功率 （kW） | |||||||||
| 1110 | 9.8 | 1.68 | Y80M2-4 | 0.75 | 154 | 1640 | 9.8 | 2.67 | Y90L-4 | 1.5 | 169 | |
| 14.7 | 1.55 | Y80M2-4 | 0.75 | 14.7 | 2.59 | Y90L-4 | 1.5 | |||||
| 19.6 | 1.50 | Y90S-4 | 1.1 | 19.6 | 2.51 | Y90L-4 | 1.5 | |||||
| 24.5 | 1.42 | Y90L-4 | 1.5 | 24.5 | 2.44 | Y100L1-4 | 2.2 | |||||
| 29.4 | 1.34 | Y90L-4 | 1.5 | 29.4 | 2.38 | Y100L1-4 | 2.2 | |||||
| 34.3 | 1.23 | Y90L-4 | 1.5 | 34.3 | 2.32 | Y100L2-4 | 3 | |||||
| 39.2 | 1.15 | Y100L1-4 | 2.2 | 39.2 | 2.26 | Y100L2-4 | 3 | |||||
| 44.1 | 1.14 | Y100L1-4 | 2.2 | 44.1 | 2.20 | Y112M-4 | 4 | |||||
| 49 | 1.05 | Y100L1-4 | 2.2 | 49 | 2.14 | Y112M-4 | 4 | |||||
| 53.9 | 0.99 | Y100L2-4 | 3 | 53.9 | 2.08 | Y112M-4 | 4 | |||||
| 58.8 | 0.94 | Y100L2-4 | 3 | 58.8 | 2.03 | Y112M-4 | 4 | |||||
| 63.7 | 0.89 | Y100L2-4 | 3 | 63.7 | 1.98 | Y132S-4 | 5.5 | |||||
| 68.6 | 0.85 | Y112M-4 | 4 | 68.6 | 1.92 | Y132S-4 | 5.5 | |||||
| 73.5 | 0.80 | Y112M-4 | 4 | 73.5 | 1.86 | Y132S-4 | 5.5 | |||||
| 78.4 | 0.76 | Y112M-4 | 4 | 78.4 | 1.81 | Y132S-4 | 5.5 | |||||
| 1240 | 9.8 | 1.90 | Y90S-4 | 1.1 | 169 | 1740 | 9.8 | 2.91 | Y90L-4 | 1.5 | 182 | |
| 14.7 | 1.84 | Y90S-4 | 1.1 | 14.7 | 2.78 | Y90L-4 | 1.5 | |||||
| 19.6 | 1.75 | Y90S-4 | 1.1 | 19.6 | 2.71 | Y100L1-4 | 2.2 | |||||
| 24.5 | 1.63 | Y90L-4 | 1.5 | 24.5 | 2.64 | Y100L1-4 | 2.2 | |||||
| 29.4 | 1.55 | Y90L-4 | 1.5 | 29.4 | 2.58 | Y100L1-4 | 2.2 | |||||
| 34.3 | 1.52 | Y100L1-4 | 2.2 | 34.3 | 2.53 | Y100L2-4 | 3 | |||||
| 39.2 | 1.45 | Y100L1-4 | 2.2 | 39.2 | 2.48 | Y100L2-4 | 3 | |||||
| 44.1 | 1.35 | Y100L1-4 | 2.2 | 44.1 | 2.41 | Y112M-4 | 4 | |||||
| 49 | 1.34 | Y100L2-4 | 3 | 49 | 2.34 | Y112M-4 | 4 | |||||
| 53.9 | 1.25 | Y100L2-4 | 3 | 53.9 | 2.28 | Y112M-4 | 4 | |||||
| 58.8 | 1.19 | Y100L2-4 | 3 | 58.8 | 2.23 | Y132S-4 | 5.5 | |||||
| 63.7 | 1.13 | Y112M-4 | 4 | 63.7 | 2.18 | Y132S-4 | 5.5 | |||||
| 68.6 | 1.08 | Y112M-4 | 4 | 68.6 | 2.12 | Y132S-4 | 5.5 | |||||
| 73.5 | 1.03 | Y112M-4 | 4 | 73.5 | 2.06 | Y132M-4 | 7.5 | |||||
| 78.4 | 0.98 | Y132S-4 | 5.5 | 78.4 | 2.01 | Y132M-4 | 7.5 | |||||
|
1360
| 9.8 | 2.18 | Y90S-4 | 1.1 |
169
|
1820
| 9.8 | 3.07 | Y90L-4 | 1.5 |
182
| |
| 14.7 | 2.08 | Y90S-4 | 1.1 | 14.7 | 3.01 | Y90L-4 | 1.5 | |||||
| 19.6 | 1.95 | Y90L-4 | 1.5 | 19.6 | 2.92 | Y100L1-4 | 2.2 | |||||
| 24.5 | 1.85 | Y90L-4 | 1.5 | 24.5 | 2.83 | Y100L1-4 | 2.2 | |||||
| 29.4 | 1.80 | Y100L1-4 | 2.2 | 29.4 | 2.75 | Y100L2-4 | 3 | |||||
| 34.3 | 1.77 | Y100L1-4 | 2.2 | 34.3 | 2.68 | Y100L2-4 | 3 | |||||
| 39.2 | 1.70 | Y100L1-4 | 2.2 | 39.2 | 2.62 | Y112M-4 | 4 | |||||
| 44.1 | 1.64 | Y100L2-4 | 3 | 44.1 | 2.56 | Y112M-4 | 4 | |||||
| 49 | 1.55 | Y100L2-4 | 3 | 49 | 2.50 | Y112M-4 | 4 | |||||
| 53.9 | 1.51 | Y100L2-4 | 3 | 53.9 | 2.44 | Y132S-4 | 5.5 | |||||
| 58.8 | 1.45 | Y112M-4 | 4 | 58.8 | 2.38 | Y132S-4 | 5.5 | |||||
| 63.7 | 1.39 | Y112M-4 | 4 | 63.7 | 2.34 | Y132S-4 | 5.5 | |||||
| 68.6 | 1.34 | Y112M-4 | 4 | 68.6 | 2.27 | Y132S-4 | 5.5 | |||||
| 73.5 | 1.28 | Y132S-4 | 5.5 | 73.5 | 2.20 | Y132M-4 | 7.5 | |||||
| 78.4 | 1.23 | Y132S-4 | 5.5 | 78.4 | 2.13 | Y132M-4 | 7.5 | |||||
| 1440 * | 9.8 | 2.32 | Y90S-4 | 1.1 | 169 | 1940 | 9.8 | 3.30 | Y90L-4 | 1.5 | 182 | |
| 14.7 | 2.24 | Y90S-4 | 1.1 | 14.7 | 3.15 | Y90L-4 | 1.5 | |||||
| 19.6 | 2.16 | Y90L-4 | 1.5 | 19.6 | 3.07 | Y100L1-4 | 2.2 | |||||
| 24.5 | 2.05 | Y90L-4 | 1.5 | 24.5 | 3.04 | Y100L1-4 | 2.2 | |||||
| 29.4 | 2.02 | Y100L1-4 | 2.2 | 29.4 | 2.98 | Y100L2-4 | 3 | |||||
| 34.3 | 1.95 | Y100L1-4 | 2.2 | 34.3 | 2.92 | Y112M-4 | 4 | |||||
| 39.2 | 1.88 | Y100L2-4 | 3 | 39.2 | 2.85 | Y112M-4 | 4 | |||||
| 44.1 | 1.82 | Y100L2-4 | 3 | 44.1 | 2.79 | Y112M-4 | 4 | |||||
| 49 | 1.76 | Y100L2-4 | 3 | 49 | 2.74 | Y112M-4 | 4 | |||||
| 53.9 | 1.70 | Y112M-4 | 4 | 53.9 | 2.68 | Y132S-4 | 5.5 | |||||
| 58.8 | 1.65 | Y112M-4 | 4 | 58.8 | 2.63 | Y132S-4 | 5.5 | |||||
| 63.7 | 1.60 | Y112M-4 | 4 | 63.7 | 2.57 | Y132S-4 | 5.5 | |||||
| 68.6 | 1.55 | Y132S-4 | 5.5 | 68.6 | 2.52 | Y132M-4 | 7.5 | |||||
| 73.5 | 1.51 | Y132S-4 | 5.5 | 73.5 | 2.47 | Y132M-4 | 7.5 | |||||
| 78.4 | 1.46 | Y132S-4 | 5.5 | 78.4 | 2.42 | Y132M-4 | 7.5 | |||||
| 1530 | 9.8 | 2.48 | Y90S-4 | 1.1 | 169 |
| ||||||
| 14.7 | 2.35 | Y90S-4 | 1.1 | |||||||||
| 19.6 | 2.28 | Y90L-4 | 1.5 | |||||||||
| 24.5 | 2.23 | Y100L1-4 | 2.2 | |||||||||
| 29.4 | 2.15 | Y100L1-4 | 2.2 | |||||||||
| 34.3 | 2.09 | Y100L1-4 | 2.2 | |||||||||
| 39.2 | 2.04 | Y100L2-4 | 3 | |||||||||
| 44.1 | 1.97 | Y100L2-4 | 3 | |||||||||
| 49 | 1.92 | Y112M-4 | 4 | |||||||||
| 53.9 | 1.86 | Y112M-4 | 4 | |||||||||
| 58.8 | 1.80 | Y112M-4 | 4 | |||||||||
| 63.7 | 1.74 | Y112M-4 | 4 | |||||||||
| 68.6 | 1.69 | Y132S-4 | 5.5 | |||||||||
| 73.5 | 1.64 | Y132S-4 | 5.5 | |||||||||
| 78.4 | 1.59 | Y132S-4 | 5.5 | |||||||||
供应CCR-65三叶鼓风机，济南启正机械工业有限公司直销风机用途：
产品主要用于环保行业、污水处理、粉体输送、水产养殖、粮食加工、钢铁冶炼、气力输送、电力、石化等行业。
CCR-65三叶罗茨鼓风机特点：
CCR-型三叶鼓风机是在长年制造罗茨风机的基础上采用新技术开发的新产品，改变了原罗茨风机进出口结构，采用了新的螺旋吸入风机，使风机几乎没有脉动，过转声音降低，改造了叶轮的外型设计，使之泄露更小，风量大，高效节能，风机风量范围广，分档密，升压高，流量范围0.5m3/min-150m3/min,升压范围9.8kpa-78.4kpa.
