| 功率 | 0.065 |
|---|---|
| 流量 | 47/65L/Min |
| 温度范围 | 100 |
| 转速 | 2850 |
| 品牌 | 冠丰 |
| 型号 | MP-40Rx |

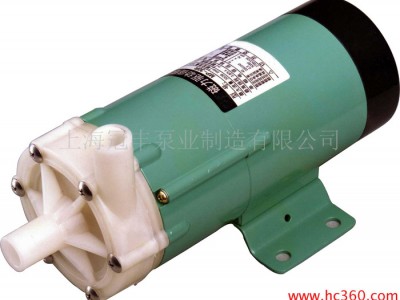

MP产品概述：MP小型磁力驱动循环泵运转是在连轴上和叶轮上分别装配有磁性材料而互相吸引偶合，无需配以传统机械轴封，因而是完全密封的。电动机转动扭力是通过主动磁及从动磁的引力带动叶片工作运转。它采选了一种特别设计的特配方陶瓷作轴承，具有极强的耐磨性和抗腐蚀性，使其先进性能和质量安全得以绝对的保证。
磁力驱动循环泵概用无轴封设计，完全避免了传统机械轴封泵存在的液体泄漏引起的腐蚀后污染的缺陷，是工业设备上最理想的液体输送泵。 使用范围： 可广泛用于化工、制药、石油、电镀、食品、电影照相洗印、科研机构、国防工业等单位抽送酸、碱液、油类稀有贵重液、毒液、挥发性液体，以及循环水设备配套、过滤、机配套。特别是易漏、易燃、易爆液体的抽送。防爆电动机选用此泵则更为理想 性能参数：
| 型号 | 软管接口式 | 螺纹接口式 | 最大流量 (L/min） | 最高扬程(m） | 标准输出量 | 比重 | 马达 | ||||
| 入口(mm） | 出口(mm) | 出入口(inch) | 活管(mm) | 50Hz/60Hz | 50Hz/60Hz | 流量(L/min）50Hz/60Hz | 扬程(m) 50Hz/60Hz | 输出(w) 50Hz/60Hz | 相 | ||
| MP-6R | 14 | 14 | - | - | 8/9 | 1/1.4 | 2.8/5 | 0.8 | <1.2 | 3 | 1 |
| MP-6RZ | 14 | 14 | - | - | 5.5/6 | 2.1/2.7 | 3.2/4.5 | 0.8 | <1.1 | 3 | 1 |
| MP-10R | 14 | 14 | - | - | 11/12 | 1.5/2.1 | 5/8 | 1 | <1.1 | 6 | 1 |
| MP-10RN | 14 | 14 | - | - | 11/12 | 1.5/2.1 | 5/8 | 1 | <1.1 | 6 | 1 |
| MP-15R | 16 | 16 | - | - | 16/19 | 2.7/3.4 | 8/12 | 1.5 | <1.3 | 10 | 1 |
| MP-15RN | 16 | 16 | - | - | 16/19 | 2.7/3.4 | 8/12 | 1.5 | <1.3 | 10 | 1 |
| MP-15RM | - | - | 3/4 | 13 | 16/19 | 2.4/3.4 | 8/12 | 1.5 | <1.3 | 10 | 1 |
| MP-20R | 18 | 18 | - | - | 27/32 | 3.1/4.3 | 17/22 | 2 | <1.2 | 20 | 1 |
| MP-20RM | - | - | 3/4 | 16 | 27/32 | 3.1/4.3 | 17/22 | 2 | <1.2 | 20 | 1 |
| MP-20RX | 26 | 26 | - | - | 46/52 | 1.8/2.5 | 30/40 | 1 | <1.3 | 20 | 1 |
| MP-20RXM | - | - | 1 | 20 | 46/52 | 1.8/2.5 | 30/40 | 1 | <1.3 | 20 | 1 |
| MP-2RZ | 18 | 18 | - | - | 10/11 | 4.6/6.9 | 7/10 | 4 | <1.1 | 20 | 1 |
| MP-20RZM | - | - | 3/4 | 13 | 10/11 | 4.6/6.9 | 7/10 | 4 | <1.1 | 20 | 1 |
| MP-30R | 20 | 20 | - | - | 33/38 | 3.8/5.4 | 16/25 | 2.5 | <1.3 | 45 | 1 |
| MP-30RM | - | - | 3/4 | 16 | 33/38 | 3.8/5.4 | 16/25 | 2.5 | <1.3 | 45 | 1 |
| MP-30RX | 26 | 26 | - | - | 62/72 | 2.9/4.1 | 32/46 | 2 | <1.1 | 45 | 1 |
| MP-30RXM | - | - | 1 | 20 | 62/72 | 2.9/4.1 | 32/46 | 2 | <1.1 | 45 | 1 |
| MP-30RZ | 18 | 18 | - | - | 15/17 | 8/11 | 10/14 | 6 | <1.1 | 45 | 1 |
| MP-30RZM | - | - | 3/4 | 13 | 15/17 | 8/11 | 10/14 | 6 | <1.1 | 45 | 1 |
| MP-40R | 20 | 20 | - | - | 45/52 | 4.6/6.5 | 22/34 | 4 | <1.1 | 65 | 1 |
| MP-40RM | - | - | 3/4 | 16 | 45/52 | 4.6/6.5 | 22/34 | 4 | <1.1 | 65 | 1 |
| MP-40RX | 26 | 26 | - | - | 75/85 | 3.3/4.7 | 47/65 | 2 | <1.1 | 65 | 1 |
| MP-40RXM | - | - | 1 | 20 | 75/85 | 3.3/4.7 | 47/65 | 2 | <1.1 | 65 | 1 |
| MP-55R | 26 | 26 | - | - | 60/70 | 5.6/8.2 | 30/45 | 4 | <1.2 | 90 | 1or3 |
| MP-55RM | - | - | 1 | 20 | 60/70 | 5.6/8.2 | 30/45 | 4 | <1.2 | 90 | 1or3 |
| MP-55RZ | 26 | 26 | - | - | 25/28 | 10/14 | 15/22 | 8 | <1.1 | 90 | 1or3 |
| MP-55RZM | - | - | 1 | 20 | 25/28 | 10/14 | 15/22 | 8 | <1.1 | 90 | 1or3 |
| MP-70R | 26 | 26 | - | - | 86/97 | 6.7/9.7 | 50/72 | 4 | <1.1 | 150/180 | 1or3 |
| MP-70RM | - | - | 1 | 20 | 86/97 | 6.7/9.7 | 50/72 | 4 | <1.1 | 150/180 | 1or3 |
| MP-100R | 26 | 26 | - | - | 120/130 | 8.6/11.6 | 60/70 | 7/9 | <1.3 | 250/265 | 1or3 |
| MP-100RM | - | - | 1 | 20 | 120/130 | 8.6/11.6 | 60/70 | 7/9 | <1.3 | 250/265 | 1or3 |
| MP-100RX | - | - | 11/4 | 32 | 170 | 9.0 | 100 | 5.0 | <1.3 | 250 | 1or3 |
| MP-120R | - | - | 11/2 | 36 | 220 | 10.5 | 140 | 6.0 | <1.3 | 370 | 1or3 |
| MP-120RT | - | - | 21/4 | 48 | 220 | 10.5 | 140 | 6.0 | <1.3 | 370 | 1or3 |
| MPH-400CV5-D | - | - | 11/2 | 36 | 260 | 12.5 | 150 | 8.5 | <1.3 | 370 | 3 |
| MPH-401CV5-D | - | - | 11/2 | 36 | 330 | 18 | 200 | 12 | <1.3 | 750 | 3 |
| MPH-422CV5-D | - | - | 2 | 11/2 | 300 | 21 | 200 | 18.5 | <1.3 | 1500 | 1or3 |
| MPH-423CV5-D | - | - | 2 | 11/2 | 360 | 22 | 300 | 20.5 | <1.3 | 2200 | 1or3 |
